This article will introduce the controls, interfaces, and indicator lights of the AudioPro A10 MKII WiiM Edition.

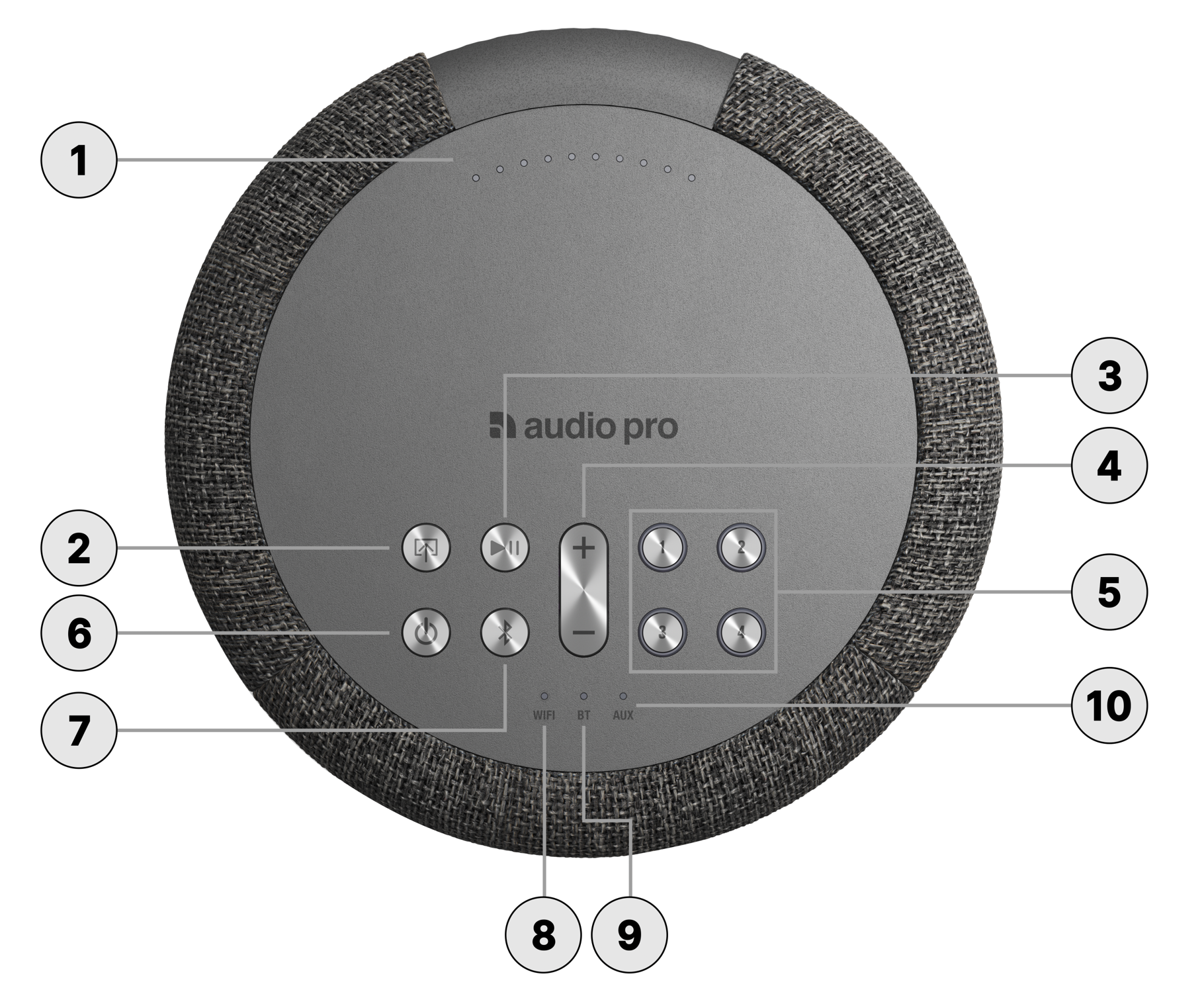

Top Panel Controls and Lights

Slow flashing white: waiting for Wi-Fi setup.
Fast flashing white: Connecting to Wi-Fi/Restoring factory settings.
Solid white: Connected to Wi-Fi.

Each numbered control and light on the top panel is explained below:

	Volume LED	Ten LEDs indicate the volume level of the AudioPro A10 MKII WiiM Edition.
	Source Switch	Press to switch the input source among Wi-Fi, Bluetooth, and AUX.
	Play/Pause	Press to start or pause the playback.
	Volume Control	Press "+" to increase the volume or "–" to decrease it.
	Preset	Press buttons 1~4 to play the corresponding presets.
	Power/Standby	Press to put the AudioPro A10 MKII WiiM Edition into standby mode or wake it.
	Bluetooth Pairing	Press to initiate Bluetooth pairing only when Bluetooth mode is selected. Note: If switched to Bluetooth mode without an existing connection, the device will automatically enter Bluetooth pairing mode.
	Wi-Fi Status LED	Indicate the Wi-Fi connection status: Slow flashing white: waiting for Wi-Fi setup. Fast flashing white: Connecting to Wi-Fi/Restoring factory settings. Solid white: Connected to Wi-Fi.
	Bluetooth Status LED	Indicate the Bluetooth connection status: Slow flashing white: waiting for Bluetooth pairing. Solid white: Bluetooth paired.
	AUX Status LED	Indicate the AUX connection status: Solid white: AUX mode is selected.

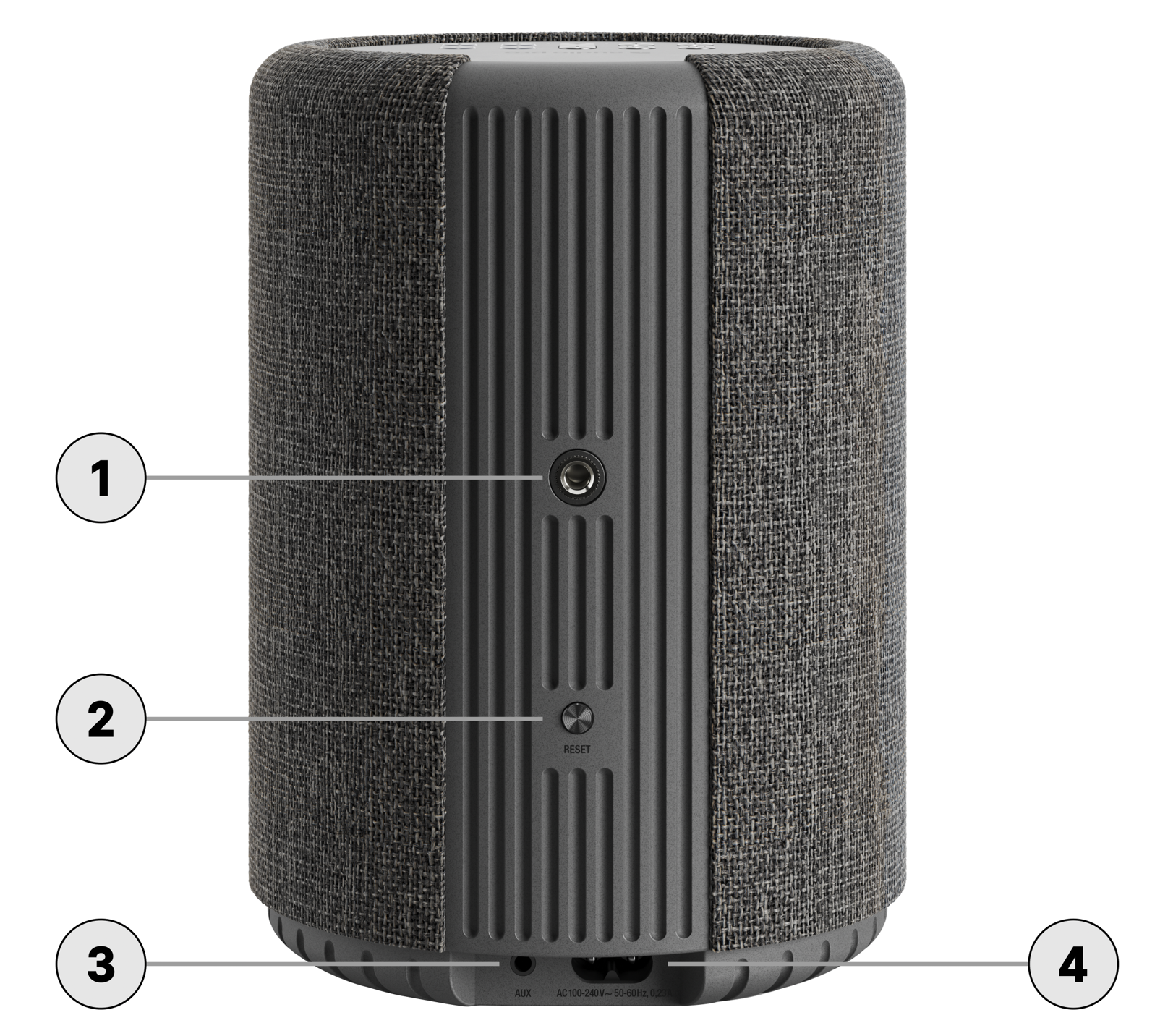

Back Panel Controls and Interfaces

Each numbered control and interface on the back panel is explained below:

	Wall Mount Hole	Used to mount the AudioPro A10 MKII WiiM Edition on a wall bracket.
	Reset	Press to enter Wi-Fi setup mode. Press and hold for 10 seconds to restore factory settings.
	3.5mm AUX	Connect to external audio sources, such as CD players and audio players, for analog audio input.
	Power Input	100-240V AC input, 50/60 Hz
