This tutorial will guide you through the process of setting up your WiiM devices to stream TV audio to different locations using the multi-room audio feature.
With the multi-room audio feature, you can stream TV audio throughout your home, allowing everyone to seamlessly enjoy TV shows, like talk shows, football matches, or the NBA, without any interruptions or sound fading away. For example, you can host a party in the front yard with friends while still keeping up with your favorite football match.

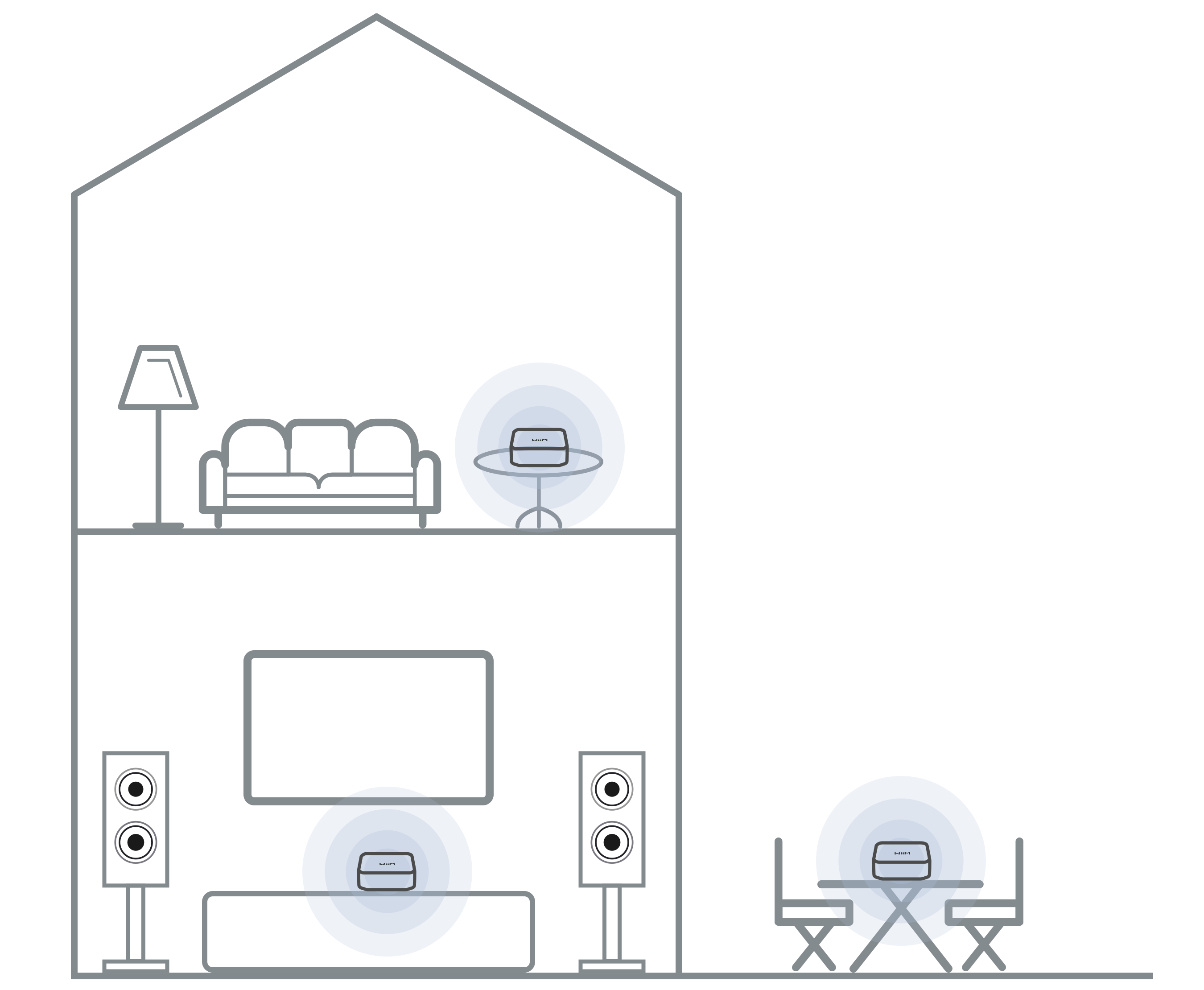

In this example, we will use the multi-room audio feature to stream TV audio to three locations: the TV room, living room, and front yard, as shown in the diagram below.
Preparation
- Connect the master WiiM device to the speakers in the TV room.
- Connect a second WiiM device to the front yard speakers.
- Connect a third WiiM device to the living room speakers.
- Set up all the three WiiM devices properly.
- Connect all three WiiM devices to the same Wi-Fi network.
Connect the Master WiiM Device to Your TV
You can connect the master WiiM device to your TV through one of the following ports, depending on the available ports on your TV and the type of WiiM device you're using:
- HDMI ARC
- Optical port
- Coaxial port
- Line port

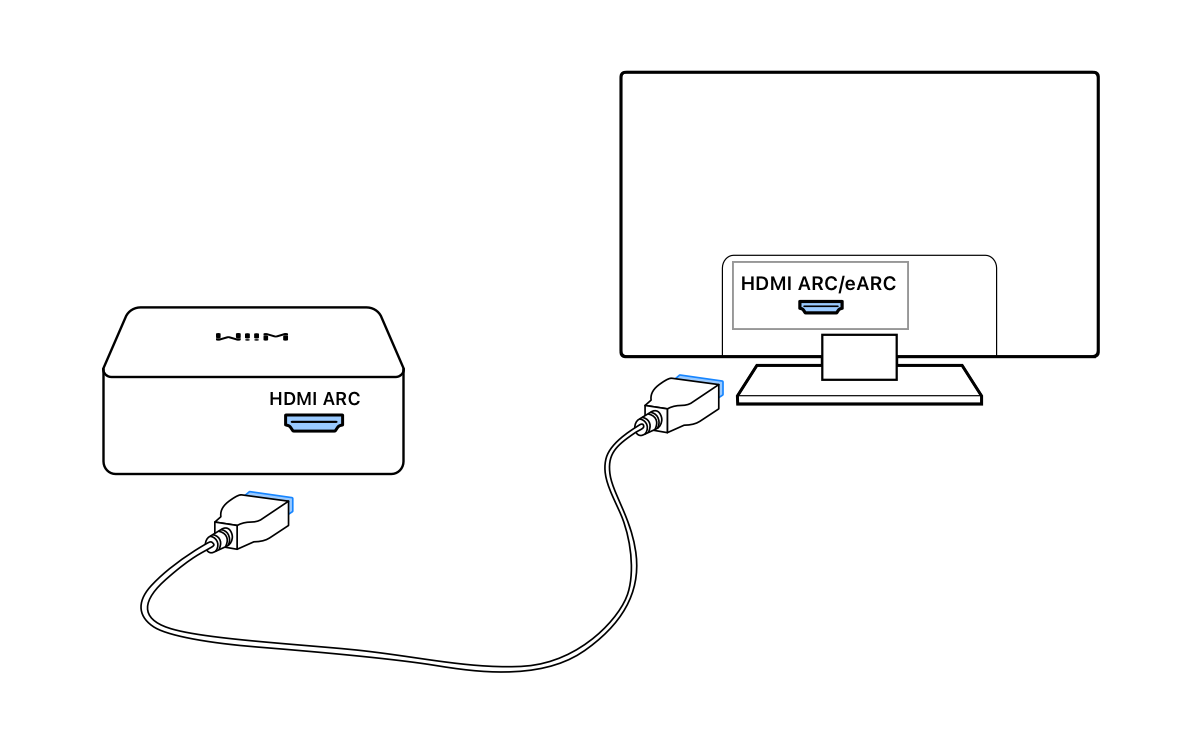

The following diagram shows an example of connecting your WiiM device to your TV via HDMI ARC.

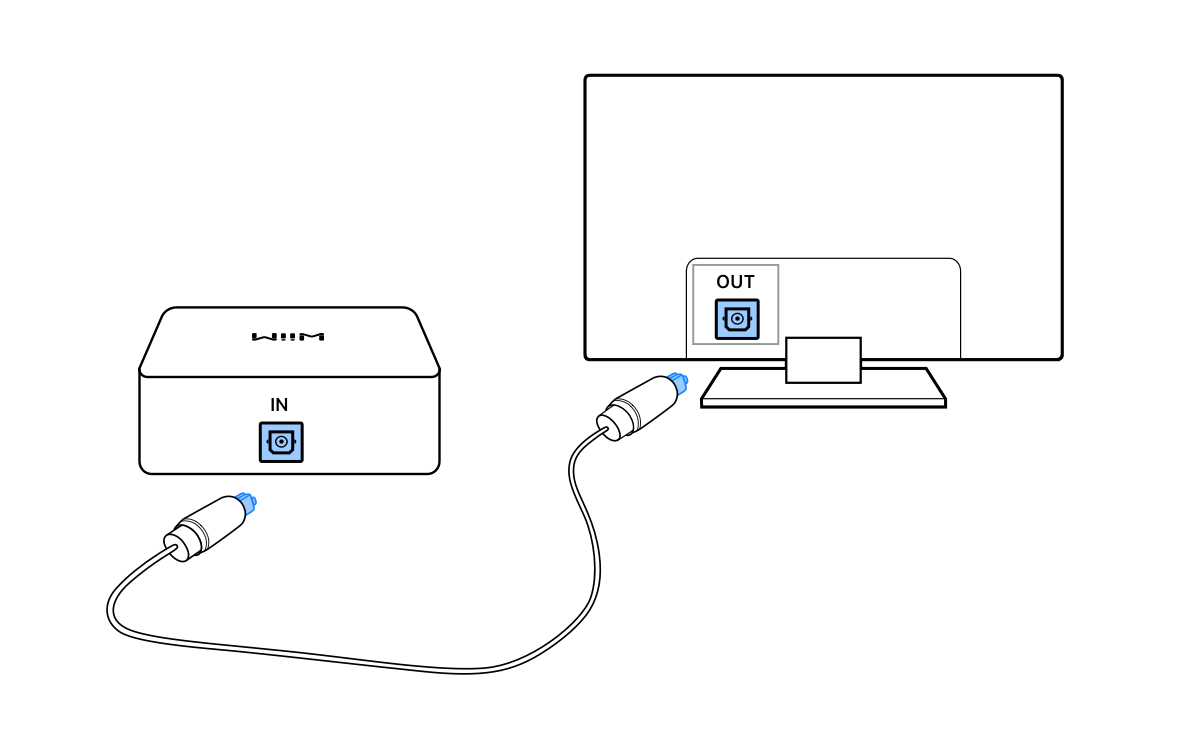

The following diagram shows an example of connecting your WiiM device to your TV via the optical port.
Set Up Multi-room Streaming in the WiiM Home App
Follow these steps to enable multi-room streaming to different locations:
- Open the WiiM Home App on your smartphone or tablet.
- Go to the Device tab.
- Tap the chain link icon
on the master device to add additional devices. - Select the other two WiiM devices connected to the front yard and living room speakers to include them in the group.
- Tap Done to complete the setup.
Your TV audio now is ready to stream to all selected devices.
